Champion GT PT Actuator Kit

Champion GT PT Actuator Kit

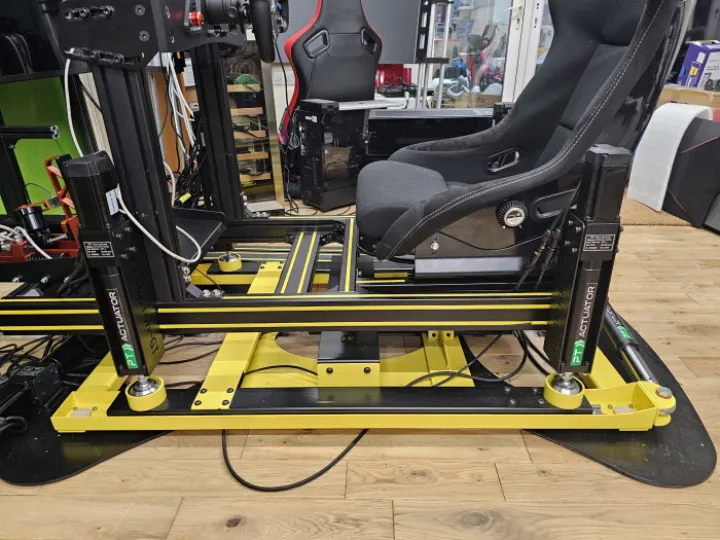

The Champion GT actuator kit by PT-Actuator is an excellent addition or a starter kit for any sim racing or sim flying cockpit. This actuator kit includes four actuators with 100 mm / 3.9" in of travel and a maximum payload of 300 kg / 660 lbs. Four mounting brackets, PTA central core controller AMC-SRS 4-in-1, PTA-Champion multiple in one metal enclosure with all shield PT-Actuator servo system build in, all power and e-coder cables and PTA E-stop button are all included.

The Champion GT system weighs only 34 kg / 75 lbs.

PT-Actuator's actuators are covered by long-term 3 years warranty.

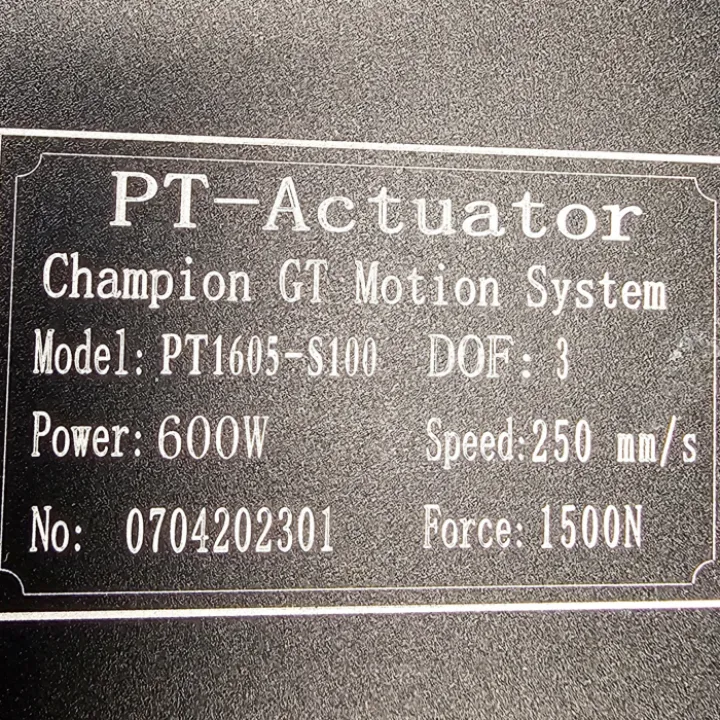

Specification of Champion GT kit:

Heave (disp/vel/accel.) ±100 mm, ±250 mm/s
Pitch (disp/vel/accel.) ±7°, ±20°/s, 210°/s2
Roll (disp/vel/accel.) ±15°, ±35°/s, 280°/s2
Supported Max Weight: 300 kg or 660 lbs
Product Weight: 34 kg (75 lbs)
Boxed Weight: 43 kg (95 lbs)

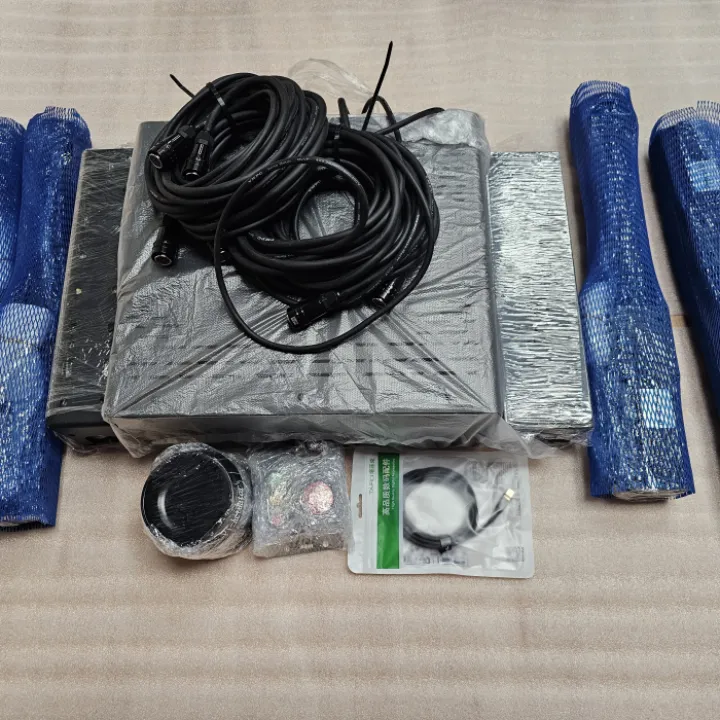

Included in the kit:

• 1 x Central core controller (AMC-SRS 4 in 1) (1 year warranty)
• 1 x PTA-Champion Multiple in One Metal Enclosure
• 4 x All Shield PT-Actuator servo system specially for sim racing or sim flying (flange size 60 with 600w) (3 years warranty)
• 4 x Actuator floor cups
• 4 x Champion GT actuators (Speed: 250 mm/s, Force: 150 kg, Stroke: 100 mm / 3.9 in)
• PT-Actuator Long-term ball screw 1605/diameter 16 mm lead screw: 5 mm (3 years warranty)
• 4 x Champion actuator cockpit mounting brackets
• 4 x Power & Encoder cables (3 m / 9.84 in)
• 1 x PTA E-stop button (LAN cable inside)

Watch Karl's review on YouTube

Delivery time

1- 3 working days
