Pimax Crystal Super – Ultra-High Fidelity PC VR

Pimax Crystal Super – Ultra-High Fidelity PC VR

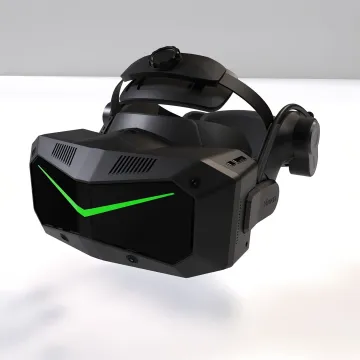

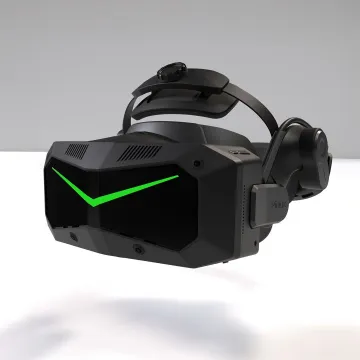

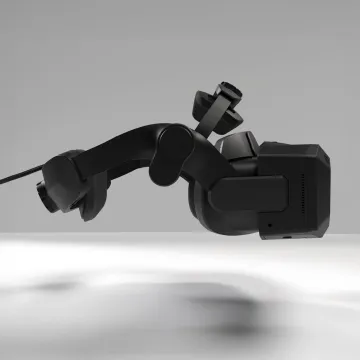

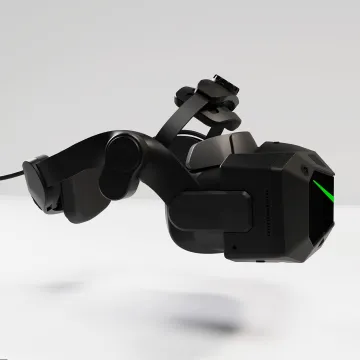

The Pimax Crystal Super is Pimax’s premium tethered PC VR headset, built around a modular optical engine and top-tier visuals, delivering an expansive field of view and cutting-edge display technology.

Key Highlights & Features

• Massive pixel count: Around 29 million pixels total, split across both eyes.
• Wide field of view: Up to 140° horizontal in its ultrawide configuration.
• Display / optics modularity: The headset supports interchangeable optical engines (e.g. QLED or micro-OLED versions) so users can upgrade or repair more flexibly.
• Eye tracking & dynamic foveated rendering: Integrated eye tracking (120 Hz) enables Dynamic Foveated Rendering (DFR), which optimizes performance by rendering highest detail where you’re looking.
• Inside-out (SLAM) tracking: Four onboard cameras scan the room for headset and controller tracking—no external base stations are required by default.
• Automatic IPD / Optical adjustment: The headset supports automatic IPD adjustment over ~58–72 mm.
• High refresh modes: Operates at 72 Hz or 90 Hz depending on usage and mode.
• Optimised for modern PCs: Using techniques like DFR and adjustable render resolutions, Pimax targets broad compatibility with contemporary gaming rigs.
• Audio & connectivity: Includes spatial audio, dual microphones, and a 3.5 mm audio jack. The headset is tethered via DisplayPort (no internal battery or wireless mode).
• Lighthouse / base station support (optional): For users who prefer base-station tracking, a Lighthouse faceplate is compatible (sold separately).

Technical Variants & Specs

Resolution per eye: 3840 × 3840 for standard QLED engines; micro-OLED versions may adjust vertical pixel count.
Fields of view vs pixel density:
In “50 PPD” mode: ~127° horizontal FOV
In “Ultrawide / 140°” mode (lower PPD)
Refresh rate: 72 Hz and 90 Hz are supported.
IPD range: Automatic 58–72 mm
Display types: Options include QLED + MiniLED local dimming or micro-OLED panels.

Design Philosophy & Trade-offs

The Crystal Super is built to deliver flagship-level VR visuals and flexibility. By making the optical engine swappable, Pimax allows for upgrades, repairs, or alternate display types (QLED vs micro-OLED).

Unlike purely standalone headsets, the Crystal Super does not include back-of-head computing (CPU/GPU, battery) and must be tethered to a PC.

Performance & Compatibility

The headset is compatible with OpenXR / OpenVR / SteamVR platforms and managed through Pimax Play software. Pimax recommends at least an RTX 2080 class GPU for baseline performance, with RTX 3070 or better for ideal experience.

What’s in the Box & Packaging

Crystal Super headset
Two 6DoF controllers
DisplayPort cable (often 5 m)
Face cushions, comfort accessories
Warranty / support documentation
