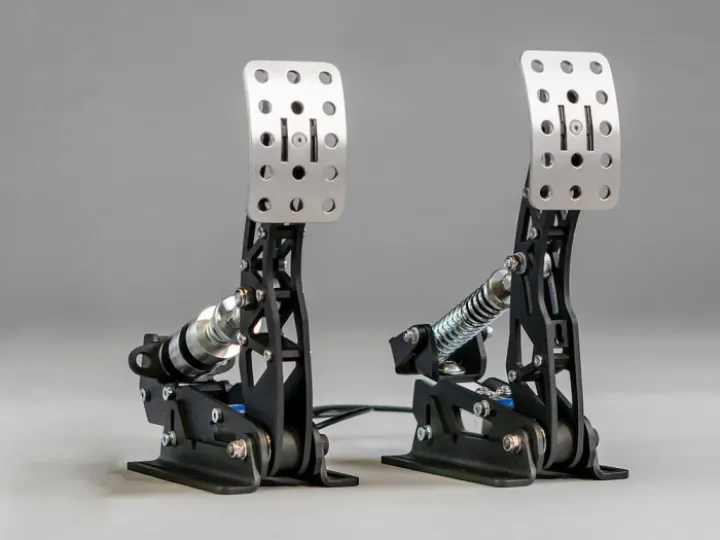

Meca EVO 1 Load Cells 2 Pedal set

Meca EVO 1 Load Cells 2 Pedal set

Set of 2 pedals without base plate. Brake pedal with loadcell technology.

The new MECA EVO 1 pedals are an evolution of the previous generation's successful pedals, enhanced by experience and feedback from sim racers worldwide. This model is therefore more robust, more reliable and even closer to reality.

Accelerator pedal:

4 mm thick steel with surface treatment
Pedal lever bearing mounting
Adjustable pedal angle
Adjustable position forward/backwards, left/right
Height-adjustable pedal face plate (glass blasted stainless steel)
Possible adjust of the stiffness of the pedal in a round groove
Fine-tuning of the preload spring with a round nut
Optional additional purchase of a long face plate for Heel and Toe
20 kg load cell sensor
Ball bearing rotation axis housing

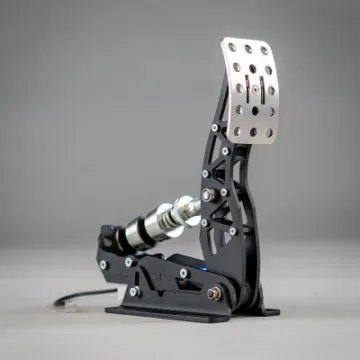

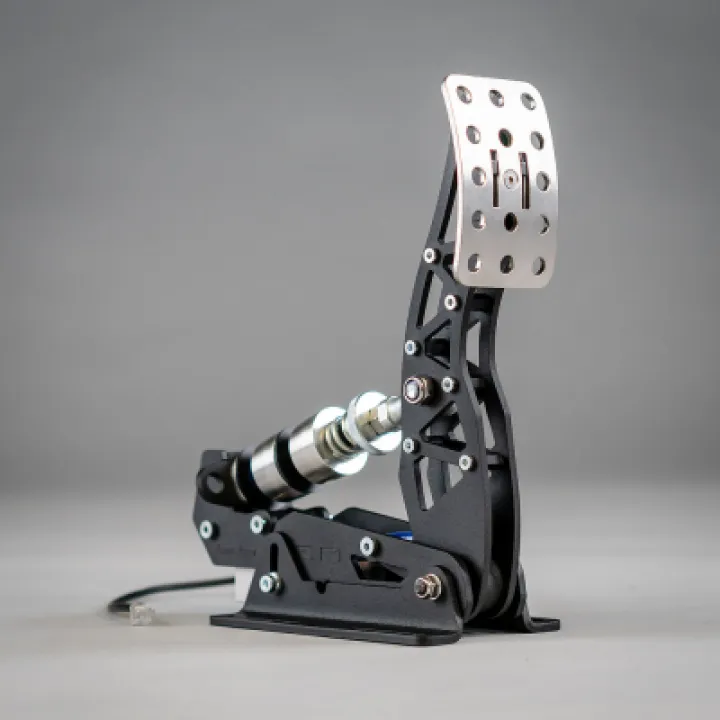

Brake pedal with Load Cells:

• 4 mm thick steel with surface treatment
• Pedal lever bearing mounting
• Adjustable pedal angle, Adjustable position forward/backwards, left/right
• Height-adjustable pedal face plate (Balotin stainless steel)
• Possible adjust of the stiffness of the pedal in a round groove
• Fine-tuning of the preload spring with a round nut. Optional additional purchase of a long faceplate for Heel and Toe
• 200 kg load cell sensor
• Ball bearing rotation axis housing

Included:

• Accelerator pedal
• Brake pedal
• PCB box
• USB-C cable
• Set of polyurethanes – 2 x black, 2 x blue, 2 x orange, 1 x plastic spacer
• User guide
• 8 x screw M6
• 8 x nut M6
• 16 x steel spacer
• 8 x plastic spacer
• 2 x T-Nut M6
• 2 x Screw M6
