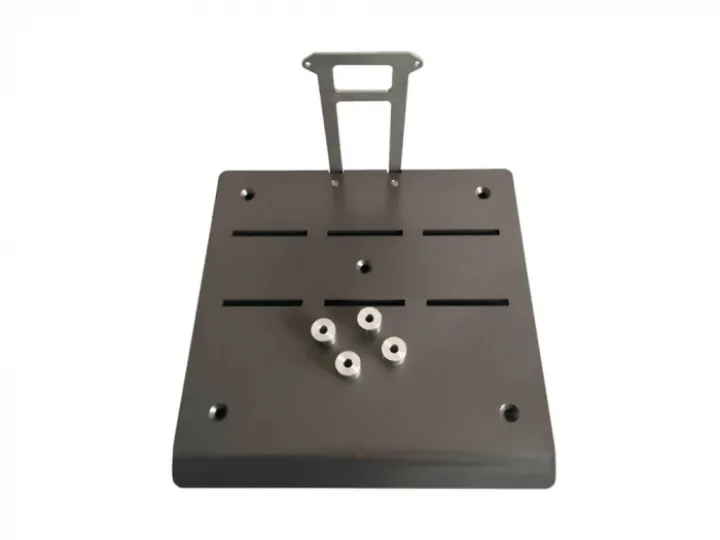

MECA CUP 1 Baseplate

The MECA baseplate is a heavy-duty mounting solution

MECA CUP 1 Baseplate

The MECA Baseplate is designed to fit your MECA CUP 1 pedal set: throttle, brake, and clutch pedals.

High-quality 8mm thick steel baseplate

Powder lacquered
Mounting point for the electronics box
Grooves enable independent adjustment of each pedal's position
Pedals are attached to the rig by 4 screws M8 and M6

For further technical information, email your enquiry to our team at any time, and we will get back to you as soon as we can.

The MECA Baseplate for the CUP 1 pedal set is a heavy-duty mounting solution that provides the extreme rigidity required for high-force load cell pedals. Because the CUP 1 brake pedal can handle up to 200kg of force, a standard flimsy pedal tray would flex, ruining your consistency and "muscle memory."

Here’s what makes this baseplate specific to the CUP 1:

Material: Constructed from 8mm thick carbon steel, significantly thicker than standard universal plates (typically 3–5mm).
Finish: It features a durable black powder-coated finish to resist wear and tear from shoes.
Weight: The plate itself is quite heavy (contributing to the full set's 15kg shipping weight), which helps dampen vibrations and ensures a rock-solid feel.

Unlike a flat plate with simple holes, the MECA baseplate has long horizontal grooves. This allows you to slide the individual pedals left or right to perfectly match your leg width or "heel-and-toe" preference. It includes a dedicated mounting area for the Leo Bodnar electronics box, keeping your cable management clean and protecting the delicate RJ11 connectors from being stepped on.
The plate is pre-drilled to fit standard sim racing cockpits and includes four aluminium spacer cylinders to slightly lift the plate off your rig's surface, if needed.
