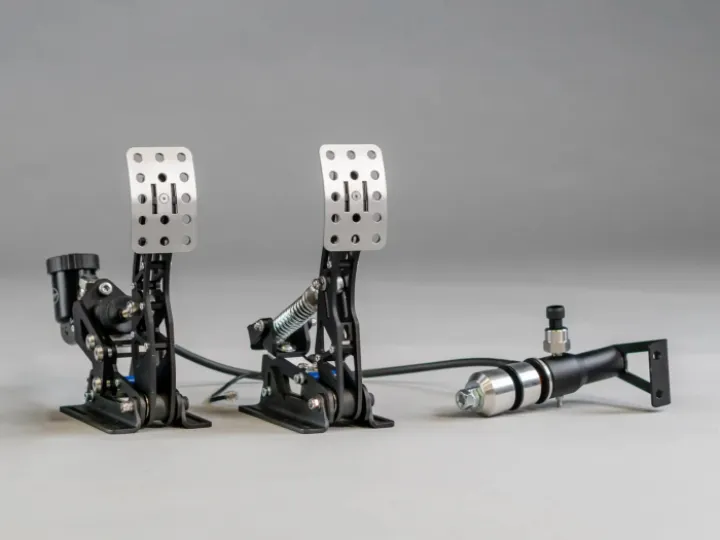

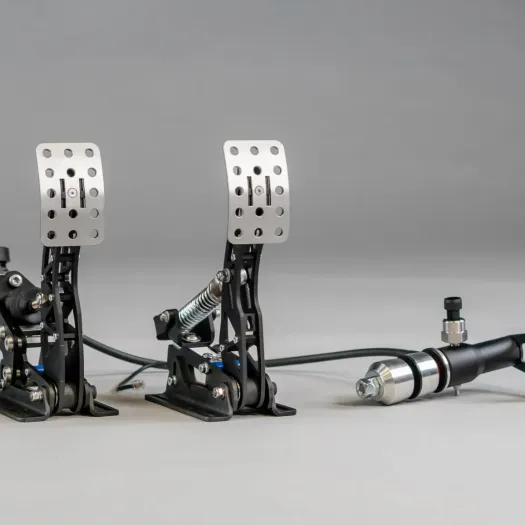

Meca EVO 1 Hydraulic 2 Pedal Set

Meca EVO 1 Hydraulic 2 Pedal Set

The new Meca EVO 1 pedals increase the emphasis on robustness, reliability and adjustability so thus sets the new standard for high-end sim racing equipment.

The height of the pedals is precisely measured for a perfect ergonomic position for both GT and F1 sitting. Due to their adjustability, the pedals are suitable for all types of simulations, from road cars and GT cars to F1 cars.

The new MECA EVO 1 pedals are an evolution of the previous generation's successful pedals, enhanced by experience and feedback from sim racers worldwide. This model is therefore more robust, more reliable and even closer to reality.

The new Meca EVO 1 pedals increase the emphasis on robustness, reliability and adjustability

so thus sets the new standard for high-end sim racing equipment. The height of the pedals is precisely measured for a perfect ergonomic position for both GT and F1 sitting. Due to their adjustability, the pedals are suitable for all types of simulations from road cars across GT cars to F1 cars.

Meca has developed a hydraulic version of the brake pedal to get even closer to a real race car. Therefore, the pedal is equipped with a Willwood master cylinder and a proprietary slave cylinder. During the development, emphasis was placed on smooth operation, system tightness and durability. The slave cylinder is equipped with polyurethane cups that protect the polyurethane from overload and simultaneously simulate the brake system's pressure.

Accelerator pedal:

• 4 mm thick steel with surface treatment
• Pedal lever bearing mounting
• Adjustable pedal angle
• Adjustable position forward/backwards, left/right
• Height-adjustable pedal faceplate (Balotin stainless steel)
• Possible adjust of the stiffness of the pedal in a round groove
• Fine-tuning of the preload spring with a round nut
• Optional additional purchase of a long faceplate for Heel and Toe
• 20 kg load cell sensor
• Ball bearing rotation axis housing

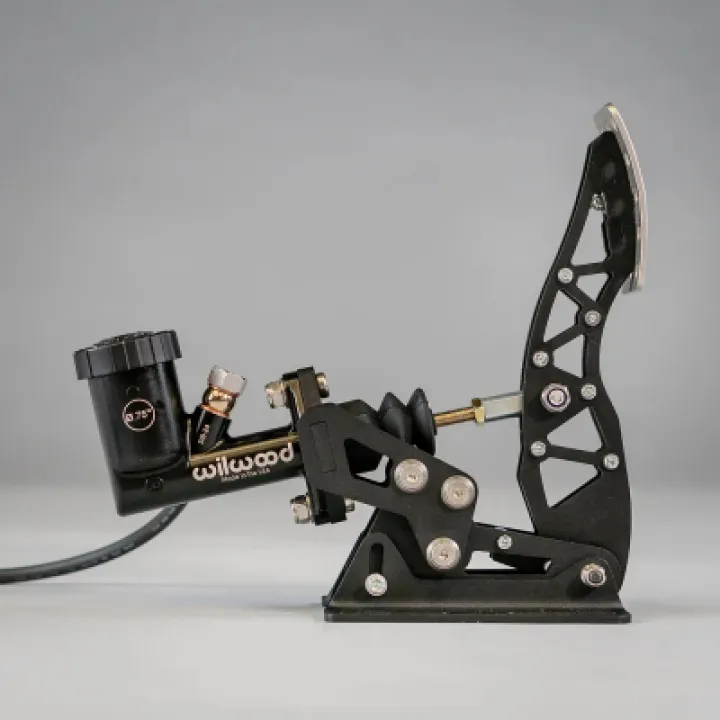

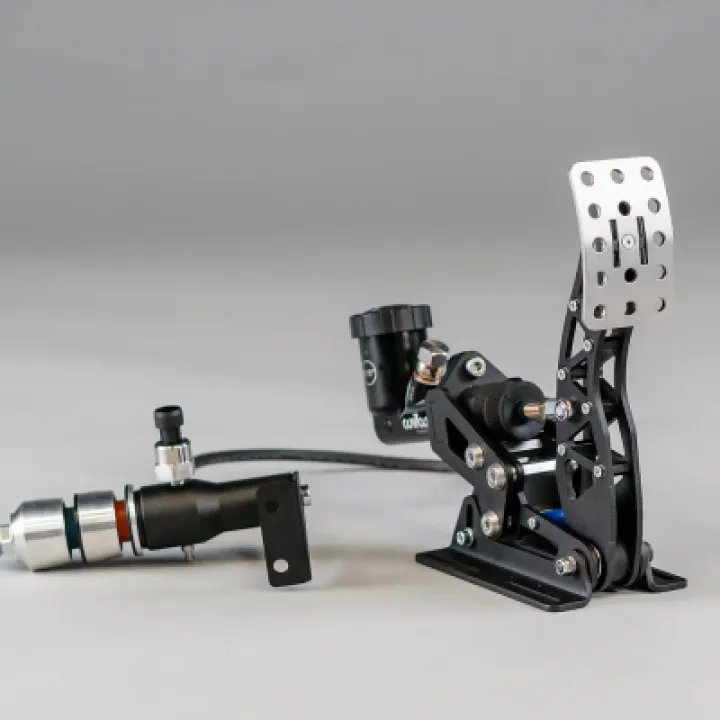

Hydraulic brake pedal:

• 4 mm thick steel with surface treatment
• Equipped with a professional master cylinder by Willwood
• Slave cylinder of its own design, which is equipped with a quality seal, for trouble-free operation of the system
• The slave cylinder is equipped with polyurethanes with an unrivalled system of cups, which protect the polyurethanes from overload and at the same time simulate the pressure of the brake system
• Possibility to adjust the rigidity of the run by choosing suitable polyurethanes, from a soft pedal to an extremely hard and short run
• Pressure sensor 1600 Psi – for maximum compression, it is necessary to develop a force of 138 kg on the pedal
• Adjustable pedal angle
• Adjustable position forward / backwards, left / right
• Adjustable tread height (Ballot stainless steel)
• Bearing of the axis of rotation
• During the development, emphasis was placed on smooth operation, tightness of the system and durability

Electronics:

• Newly developed electronic board of our own production
• RJ connectors for connecting individual pedals
• USB-C connector for connection to a PC
• New Meca Control Panel software
• 9-point curve settings for each pedal
• Dead zones setting and pedal calibration
• Profile saves
• Electronics housed in a stainless steel body

All pedals are fully adjustable and made of 4mm-thick steel with a surface treatment. Set of 2 pedals without base plate. Hydraulic Brake pedal.

Included:

• Accelerator pedal
• Brake pedal (hydraulic), including slave cylinder
• PCB box
• USB-C cable
• Polyurethane set – 2 x blue (80sh), 2 x orange (90sh), 2 x honey (95sh)
• User manual
• 8 x screw M6x25
• 8 x mother M6
• 16 x steel washer
• 8 x plastic pad
• 2 x T-Nut M6
• 2 x screw M6x12
