Meca CUP 1 Clutch Pedal

Meca CUP 1 Clutch Pedal

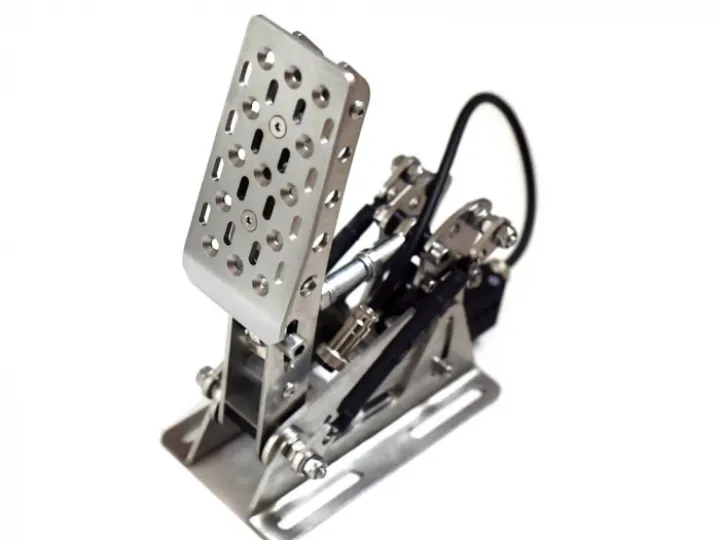

Clutch pedal Assembly

• High quality 3mm thick stainless steel construction
• Bronze slide bearing
• Loadcell sensor
• Custom board for signal conversion from loadcell (analogue-digital)
• The pedal can be adjusted both in height and longitude – Ballotine surface

Very strong construction, no unwanted movements or squeaks.

Excellent response to foot with adjustable personal preferences.

Made to last through the usage of loadcells, quality materials, electronics and bronze lathed components.

This clutch pedal can be tilted forwards by loosening the rear screws in the round groove at the rear of the pedal, which allows the pedal to tilt by 18°

The pedal surface is treated with ballotin ( glass blasting), which increases the adhesion.

Clutch pedal operates on a cradle principle with pre-tensioned springs. The system works by depressing the pedal along a certain trajectory where at a given point the cradle tips over resulting in the reduction of pressure to the foot.

The pedal force can be adjusted by the pedal lever by repositioning it in its groove.

Solid construction, excellent control and a pedal feeling whilst accelerating just like in a real racing car.

CLUTCH PEDAL

Bronze slide bearing
Loadcell sensor
Custom board for signal conversion from loadcell (analogue-digital)
Adjustable height and longitudinal position

The clutch pedal operates on a cradle principle with pre-tensioned springs. The system works by depressing the pedal along a predefined trajectory were at a given point the cradle tips over resulting in the reduction of pressure to the foot. Additionally, the pedal force can be adjusted by repositioning the pedal lever in its groove.

Handmade in Czech Republic.

WHAT'S INCLUDED

• CLUTCH pedal- stainless steel construction
• 4 x screw – M6 x 20
• 4 x nut -M6
• 4 x underlay – 6mm
